Delta BC sits on the Fraser River delta, a thick sequence of soft silt and clay deposits with occasional sand lenses. In our experience, the Ménard pressuremeter test is the most reliable in-situ method for measuring the undrained shear strength and modulus of these compressible soils. Unlike SPT or CPT, the PMT directly yields a stress-strain curve under controlled radial expansion, giving us the limit pressure (pL) and the Ménard modulus (EM). We routinely pair this with a tomografía sísmica to correlate shear wave velocity with pressuremeter data, and with cimentaciones sísmicas analysis to check seismic bearing capacity under NBCC 2020 spectral accelerations. For Delta BC, where peat layers and soft clay extend over 30 m deep, the PMT is the benchmark for foundation design.
The Ménard pressuremeter test in Delta BC captures the actual stress-strain response of soft deltaic soils, directly feeding settlement and bearing capacity calculations under NBCC 2020.
Methodology applied in Delta BC
Demonstration video
Local geotechnical conditions in Delta BC
A four-story condominium on River Road in Delta BC was designed with shallow footings based on SPT N-values alone. After construction, the building settled 150 mm in two years, causing structural cracks and foundation repairs exceeding CAD 400,000. The problem: SPT does not measure the modulus of soft clay reliably. A Ménard pressuremeter test performed before design would have revealed the true compressibility of the underlying silt layer and allowed for a raft foundation or ground improvement. In Delta BC, where post-glacial marine clay underlies the modern delta, skipping the PMT is a financial risk we see too often. The lesson: pressuremeter data directly reduces settlement uncertainty.
Our services
We offer a complete pressuremeter testing service in Delta BC, from mobilization to final geotechnical report. All tests are supervised by a professional engineer with P.Eng. registration in British Columbia.
Prebored Pressuremeter Testing (PMT)

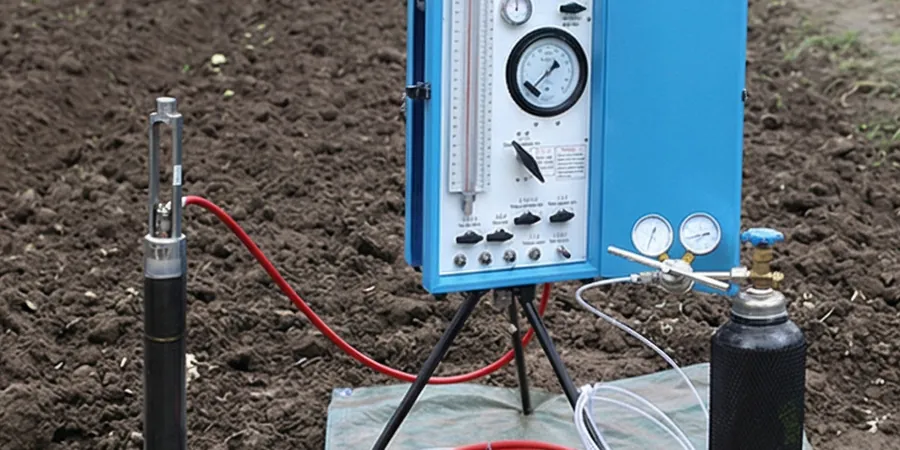

Full ASTM D4719-07 procedure using a BX Ménard probe. Includes borehole drilling, calibration, controlled load application, and real-time pressure-volume recording. Delivered with raw data plots and interpreted pL, EM, and pf values for each test depth.
Pressuremeter Data Interpretation & Foundation Design
Engineering analysis of PMT results to compute allowable bearing capacity for shallow and deep foundations, settlement modulus for raft slabs, and horizontal subgrade reaction for retaining walls. We integrate results with NBCC 2020 load combinations.
Ground Improvement Verification
Before-and-after Ménard pressuremeter tests to verify the effectiveness of stone columns, deep soil mixing, or preloading in Delta BC. We compare pre- and post-treatment pL and EM values to confirm design assumptions and certify as-built performance.
Frequently asked questions
How much does a Ménard pressuremeter test cost in Delta BC?
The typical cost for a Ménard pressuremeter test in Delta BC ranges between CA$1.320 and CA$1.960 per test depth, including mobilization, drilling, probe insertion, data acquisition, and a certified report with interpreted pL, EM, and pf values. The final price depends on the number of test points, depth, and site access conditions.
What is the difference between PMT and SPT for Delta BC soils?
SPT measures blow counts (N-value) which correlate to relative density in sands but give only a rough estimate of strength in soft clays. The Ménard pressuremeter test directly measures the stress-strain curve under controlled radial expansion, providing the limit pressure (pL) and Ménard modulus (EM). For Delta BC's soft deltaic silt and clay, PMT is far more accurate for settlement and bearing capacity calculations. SPT may miss the true compressibility of these deposits.
At what depth should I run PMT in Delta BC?
For typical buildings in Delta BC, we recommend PMT at depths of 3 m, 6 m, 10 m, 15 m, and 20 m below ground surface to capture the variation in soft silt and clay layers. If deep foundations (piles or caissons) are planned, extend testing to 25 m or 30 m to verify bearing capacity in the underlying dense sand or till. The vertical spacing should not exceed 3 m in uniform deposits; reduce to 1.5 m in layered zones.
Can PMT be performed in peat or organic soils in Delta BC?
Yes. The Ménard pressuremeter test works well in peat and organic silt if the borehole is stabilized with a temporary casing or drilling mud to prevent collapse. The probe's radial expansion measures the very low modulus and high compressibility of peat, which is critical for predicting differential settlement under embankments or light structures. We have successfully performed PMT in Delta BC peat layers as shallow as 2 m below grade.
