A six-story condo project on Delta BC's floodplain required a foundation that could handle deep soft soils. Driven piles transfer loads through surficial peat and silt down to denser sand layers. We ran SPT borings to refusal and used CPT data to model shaft friction and end bearing. The design followed NBCC 2020 seismic provisions for the Fraser River delta. Before finalizing the pile layout, we cross-checked results with a microzonificación sísmica study to capture local amplification effects. That extra step saved the developer from over-designing pile lengths.

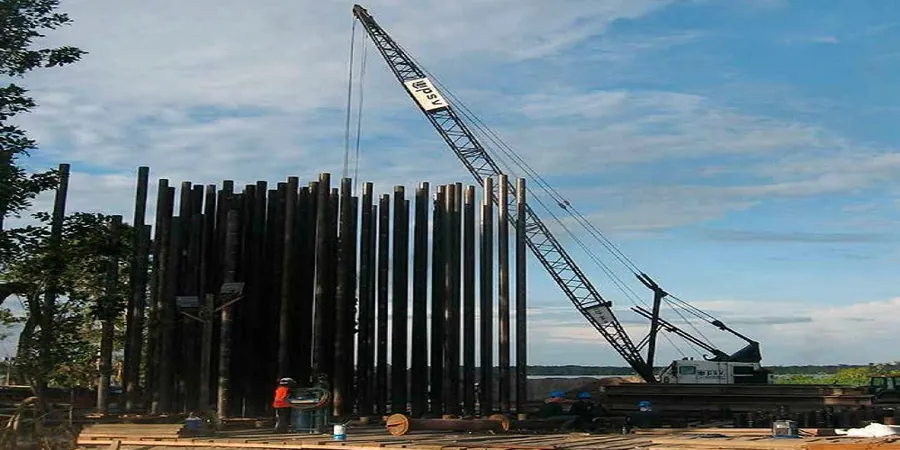

Illustrative image of Pilotes hincados in Delta BC

Driven pile design in Delta BC must account for the soft marine clay crust and potential downdrag from deep peat layers.

Methodology applied in Delta BC

Delta BC sits on the Fraser River floodplain, where soils transition from soft organic silts to compact sands at depth. Driven piles must punch through that upper crust without damaging adjacent structures. We log each blow count during installation and correlate it to the site's stratigraphy. For projects with variable fill layers, we combine driven pile design with ensayo CPT soundings to map soil boundaries continuously. This avoids stopping at a false refusal. Key parameters we evaluate:

Skin friction along pile shaft
End bearing capacity at tip
Group efficiency and settlement
Negative skin friction in settling soils

Driven Pile Design in Delta BC – Geotechnical Expertise for Deep Foundations

Parameter	Typical value
Pile type (concrete/steel/timber)	Precast prestressed concrete, H-pile, timber
Design capacity (kN)	500 – 3,500 per pile
SPT blow count at tip (N-value)	30 – 60 blows/300mm
Settlement tolerance (mm)	25 mm total, 12 mm differential
Factor of safety (NBCC 2020)	2.0 – 3.0 (service limit state)

Local geotechnical conditions in Delta BC

NBCC 2020 classifies Delta BC as a high seismicity zone with liquefaction potential in the Fraser delta soils. Driven piles must resist lateral spreading and cyclic degradation. We design for a minimum factor of safety of 2.0 under seismic loading. Pile groups in soft clays also risk downdrag from ground settlement. We model that using long-term consolidation data from oedometer tests. Ignoring these risks leads to differential settlement or pile buckling in a seismic event. Our reports include explicit liquefaction triggering analysis per Youd-Idriss (2001) and NCEER guidelines.
